1/48 B-25 Mitchell - cockpit detail set for HK Model, Catalog number 200-A48078

1/48 B-25J Mitchell - cockpit detail set for HK Model kit, Art Scale cat. no. 200-A48078

1/48 B-25J Mitchell Cockpit Upgrade Set

By Art Scale Kit Distribution s.r.o.

Elevate your scale modeling to the next level with our premium cockpit upgrade set, specifically designed for the 1/48 scale B-25J Mitchell.

Crafted with passion and precision, this set features brilliant, ultra-detailed 3D design and cutting-edge 3D printing. We have focused on maximum authenticity to ensure a stunningly faithful representation of the real aircraft. Best of all, it is engineered for a perfect drop-in fit—all components can be applied directly to the kit as direct replacements for the original plastic parts, requiring absolutely no complex modifications.

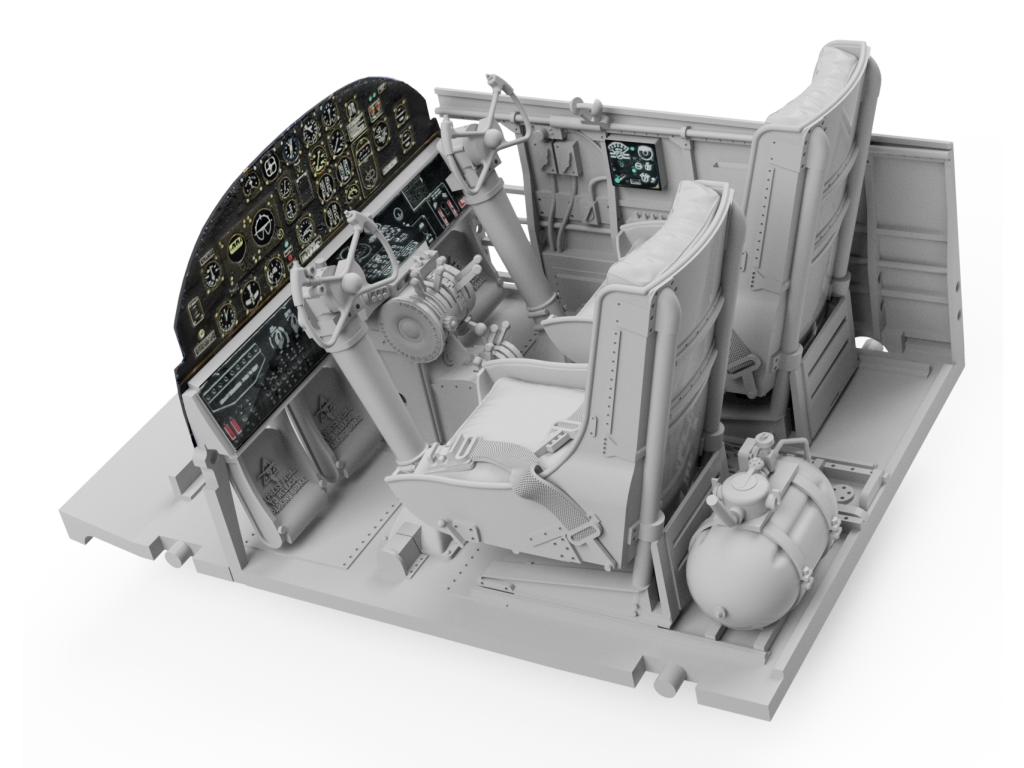

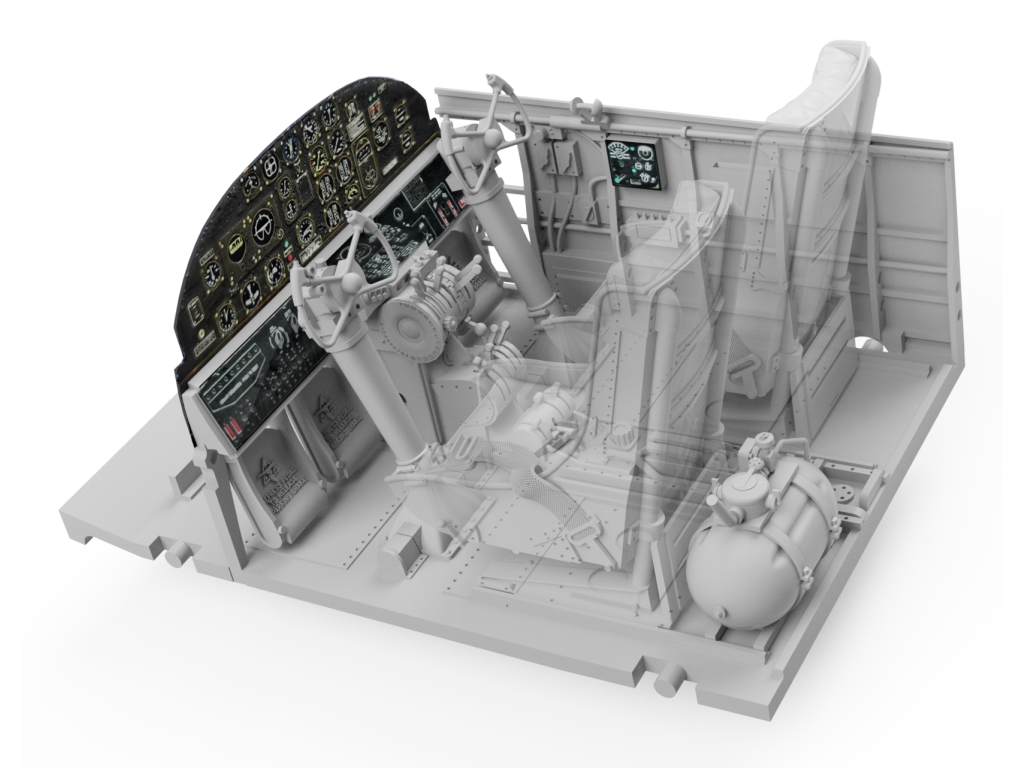

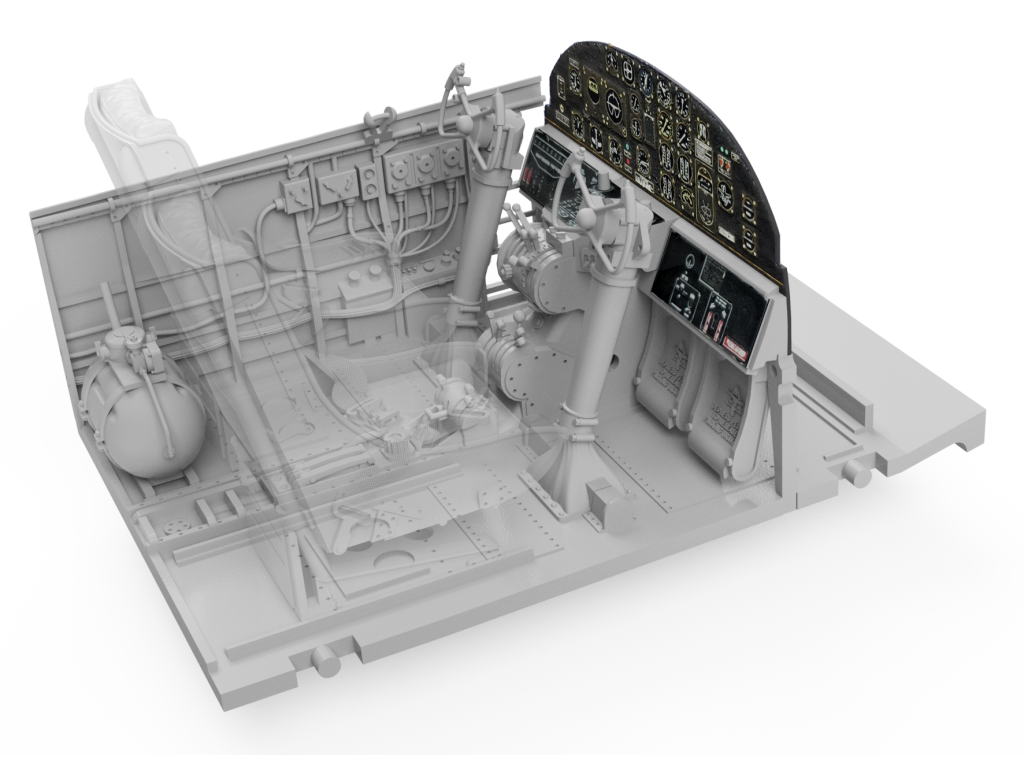

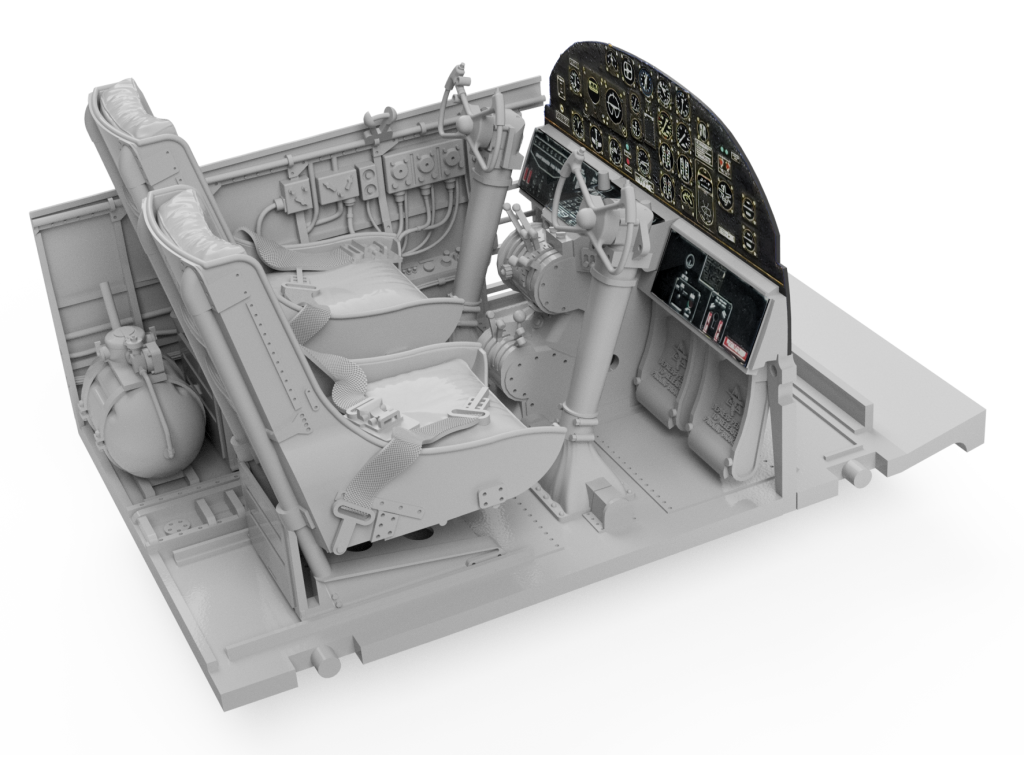

What’s Included in the Set:

• Cockpit Floor: Beautifully textured and structurally accurate.

• Side Panels: Fully detailed right and left cockpit sidewalls.

• Oxygen Tank: Crisp, scale-accurate replication.

• Rudder Pedals: Complete with the instrument panel mounting console.

• Control Yokes: Highly detailed pilot and co-pilot control wheels.

• Instrument Panel: A combination of 3D parts and pre-painted photo-etched (PE) parts for ultimate realism.

Why choose this set? It bridges the gap between standard plastic kits and museum-quality replicas, saving you time on modifications while delivering breathtaking detail.

Professional look

Whether you are a beginner or an experienced modeler, our new excellent adjusted cockpit will help you achieve a professional result. You'll not only improve the details of the pilots cabine, but also the overall impression of the model, which will become the jewel of your collection.

Using our 3D printed high detailed cockpit will not only give you a realistic and detailed addition, but also make your job easier and ensure that your model is as accurate as possible.

Here is the clean, streamlined English text optimized directly for your e-shop description. It includes the color reference and a quick application guide to give your customers all the technical details they need before buying.

Painting & Finishing Guide

To unlock the full potential of the stunning 3D-printed details and pre-painted photo-etched parts, we recommend using high-quality modeling paints. The cockpit of the B-25J Mitchell was historically finished in standard US Army Air Forces Interior Green, with specific elements featuring distinct operational colors.

Recommended Paint Reference Chart

• Main Interior Surfaces (Floor, Sidewalls, Structure):

  • Tamiya: XF-62 + XF-4 (1:1 mix) or XF-81

  • Mr. Hobby (Gunze): H58 (Aqueous) / C151 (Mr. Color)

  • Vallejo: 71.010 (Model Air) / 70.974 (Model Color)

  • AK Interactive: RC264 (Real Color) / AK11326 (3G Acrylic)

• Control Columns & Dark Details (Bronze Green / Dull Dark Green):

  • Tamiya: XF-89 + XF-5

  • Mr. Hobby (Gunze): H302 (Aqueous) / C302 (Mr. Color)

  • Vallejo: 71.124 (Model Air) / 70.897 (Model Color)

  • AK Interactive: RC262 (Real Color) / AK11149 (3G Acrylic)

• Oxygen Cylinders (Shatterproof Yellow):

  • Tamiya: XF-3

  • Mr. Hobby (Gunze): H4 (Aqueous) / C4 (Mr. Color)

  • Vallejo: 71.002 (Model Air) / 70.953 (Model Color)

  • AK Interactive: RC007 (Real Color) / AK11044 (3G Acrylic)

• Instrument Boxes & Knobs (Flat Black / Rubber Black):

  • Tamiya: XF-1 / XF-85

  • Mr. Hobby (Gunze): H12 (Aqueous) / C33 (Mr. Color)

  • Vallejo: 71.057 (Model Air) / 70.950 (Model Color)

  • AK Interactive: RC001 (Real Color) / AK11001 (3G Acrylic)

• Seat Belts & Fabric Details (Khaki / Olive Drab):

  • Tamiya: XF-49 / XF-62

  • Mr. Hobby (Gunze): H81 (Aqueous) / C23 (Mr. Color)

  • Vallejo: 71.013 (Model Air) / 70.921 (Model Color)

  • AK Interactive: RC023 (Real Color) / AK11145 (3G Acrylic)

How to Achieve the Best Results:

• Preparation & Priming: Gently wash the 3D-printed parts in lukewarm soapy water to remove any residual support fluid. Prime the parts using a high-quality micro-filler primer (such as Mr. Surfacer 1200/1500 or AK Interactive Black Primer) to ensure absolute paint adhesion.

• Detail Painting: For hand-brushing smaller components like the control wheels and oxygen tank, Vallejo Model Color or AK 3G Acrylics are highly recommended due to their excellent coverage and smooth, self-leveling flow.

• Weathering: To make the crisp 3D structural details and rivets pop, apply an enamel-based wash such as Tamiya Panel Line Accent Color (Brown/Black) or AK Interactive Landing Gear Wash into the recesses.

• Photo-Etched Parts: Install the beautifully pre-printed color photo-etched instrument panel onto the 3D-printed console backing using a tiny amount of cyanoacrylate (CA) glue after your main cockpit painting and matte clear coats are fully dry.

Pro-Tip: Always seal your acrylic base coats with a clear gloss or satin varnish before applying enamel-based weathering products. This protects the underlying paint layer and allows washes to flow smoothly into the incredible 3D-printed details.

Here is the clean, streamlined English text optimized directly for your e-shop description. It includes the color reference and a quick application guide to give your customers all the technical details they need before buying.

Painting & Finishing Guide

To unlock the full potential of the stunning 3D-printed details and pre-painted photo-etched parts, we recommend using high-quality modeling paints. The cockpit of the B-25J Mitchell was historically finished in standard US Army Air Forces Interior Green, with specific elements featuring distinct operational colors.

Recommended Paint Reference Chart

• Main Interior Surfaces (Floor, Sidewalls, Structure):

  • Tamiya: XF-62 + XF-4 (1:1 mix) or XF-81

  • Mr. Hobby (Gunze): H58 (Aqueous) / C151 (Mr. Color)

  • Vallejo: 71.010 (Model Air) / 70.974 (Model Color)

  • AK Interactive: RC264 (Real Color) / AK11326 (3G Acrylic)

• Control Columns & Dark Details (Bronze Green / Dull Dark Green):

  • Tamiya: XF-89 + XF-5

  • Mr. Hobby (Gunze): H302 (Aqueous) / C302 (Mr. Color)

  • Vallejo: 71.124 (Model Air) / 70.897 (Model Color)

  • AK Interactive: RC262 (Real Color) / AK11149 (3G Acrylic)

• Oxygen Cylinders (Shatterproof Yellow):

  • Tamiya: XF-3

  • Mr. Hobby (Gunze): H4 (Aqueous) / C4 (Mr. Color)

  • Vallejo: 71.002 (Model Air) / 70.953 (Model Color)

  • AK Interactive: RC007 (Real Color) / AK11044 (3G Acrylic)

• Instrument Boxes & Knobs (Flat Black / Rubber Black):

  • Tamiya: XF-1 / XF-85

  • Mr. Hobby (Gunze): H12 (Aqueous) / C33 (Mr. Color)

  • Vallejo: 71.057 (Model Air) / 70.950 (Model Color)

  • AK Interactive: RC001 (Real Color) / AK11001 (3G Acrylic)

• Seat Belts & Fabric Details (Khaki / Olive Drab):

  • Tamiya: XF-49 / XF-62

  • Mr. Hobby (Gunze): H81 (Aqueous) / C23 (Mr. Color)

  • Vallejo: 71.013 (Model Air) / 70.921 (Model Color)

  • AK Interactive: RC023 (Real Color) / AK11145 (3G Acrylic)

How to Achieve the Best Results:

• Preparation & Priming: Gently wash the 3D-printed parts in lukewarm soapy water to remove any residual support fluid. Prime the parts using a high-quality micro-filler primer (such as Mr. Surfacer 1200/1500 or AK Interactive Black Primer) to ensure absolute paint adhesion.

• Detail Painting: For hand-brushing smaller components like the control wheels and oxygen tank, Vallejo Model Color or AK 3G Acrylics are highly recommended due to their excellent coverage and smooth, self-leveling flow.

• Weathering: To make the crisp 3D structural details and rivets pop, apply an enamel-based wash such as Tamiya Panel Line Accent Color (Brown/Black) or AK Interactive Landing Gear Wash into the recesses.

• Photo-Etched Parts: Install the beautifully pre-printed color photo-etched instrument panel onto the 3D-printed console backing using a tiny amount of yanoacrylate (CA) glue after your main cockpit painting and matte clear coats are fully dry.

Pro-Tip: Always seal your acrylic base coats with a clear gloss or satin varnish before applying enamel-based weathering products. This protects the underlying paint layer and allows washes to flow smoothly into the incredible 3D-printed details.
